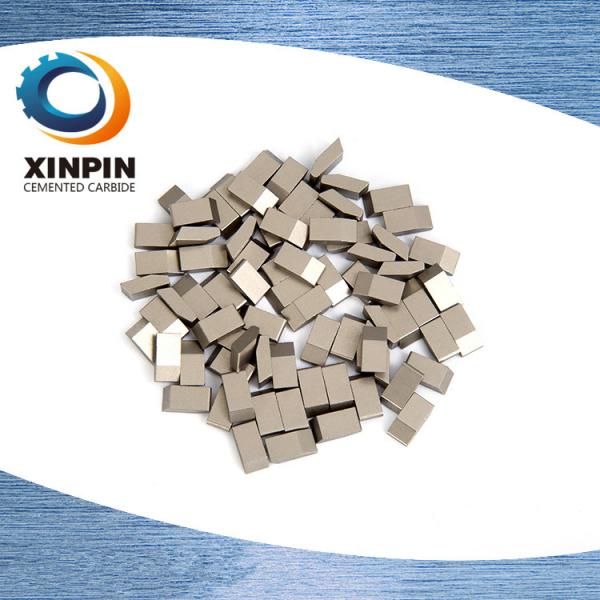

Industrial grade tungsten carbide saw tips for industrail saw blade
for woodworking
Features of tungsten carbide saw tips
- High stability thanks to good quality raw material
- Ideal balance between wear and impact resistance, sharp and
wearable,no broken tooth
- Big range of sizes and grades, free mould for customized
dimension
- Manufactory price and ISO certified quality
- Smooth surface, easy to welding
Surface treatment: nickel coating,sandblasting,polishing,tumbling
Application: softwood, hardwood, chipboard, HDF&MDF, Plywood,
laminated, non-ferrous etc
Processing type: sawing
Machine type:circular panel saw,scoring saw,Multi-ripping saw,band
saw etc
Sample: <500g, standard size available.
Tungsten Carbide Saw tips for TCT circular panel saw,scoring
saw,Multi-ripping saw,band saw
Thank for our experienced engineers team with 20 years working
experienced in the metallurgical industry, they constanlty develop
and refine our portfolio of carbide grades to ensure the right
choice for all kinds of materials and machining conditions. And
each kind of material has its very own specific propertied, we
offer a wide variety of grades in the all cutting field. We are
happy to help you select the best grade for you depening on your
application, to make you enjoy a smoothly cutting work. And the
table below will guide you in finding the right grade for your
application.
GRADE PROPERTIES FOR SAW TIPS
| Grade | ISO CODE | Grain Size | Binder | Density(g/Cm3) | Hardness(HRA) | Transverse Rupture Strength(N/mm2) |
| Industrial | SM02 | K01 | Ultra-micron | 2.8 | 15.0-15.2 | 94.5-94.8 | ≥2400 |
| SM03 | K01 | Sub-micron | 3 | 15.0-15.2 | 94.0-94.4 | ≥2600 |
| XP40 | M20 | Sub-micron | 10 | 13.0-13.2 | 91.2-91.8 | ≥2800 |
| XP30 | P30 | Sub-micron | 10 | 13.1-13.3 | 91.4-92.0 | ≥2700 |
| SM12 | M20 | Sub-micron | 10 | 14.2-14.4 | 91.8-92.3 | ≥3000 |
| Professional | SM05 | K01 | Sub-micron | 3.5 | 15.0-15.2 | 93.8-94.0 | ≥3000 |
| SM07 | K05 | Sub-micron | 5 | 14.8-15.0 | 93.2-93.6 | ≥3000 |
| XF6 | K10 | Fine | 6 | 14.7-14.9 | 92.0-92.8 | ≥2600 |
| XF8 | K20 | Fine | 8 | 14.5-14.7 | 91.0-92.0 | ≥2800 |
| XF10 | K30 | Fine | 10 | 14.3-14.5 | 90.5-91.5 | ≥3000 |
| Universal | XK10 | K10 | Medium | 6 | 14.8-15.0 | 90.5-91.0 | ≥2400 |
| XK15 | K20 | Medium | 6.5 | 14.8-15.0 | 90.5-91.5 | ≥2800 |
| XK20 | K20 | Medium | 8 | 14.6-14.8 | 89.5-90.5 | ≥2600 |
General, Industrial and professional grade for your ideal balance
between efficiency and cost, please refer to the following list of
recommendations
| Grade | Solidwood | Hardwood | Plywood | HDF | MDF | Chipboard | recycle wood with nails | Acrylic | Non-Ferrous Matel | Metal, stainless steel, color steel |
| Industrial | SM02 | | | | ♥♥♥♥ | ♥♥♥♥ | ♥♥♥♥ | | | | |
| SM03 | | | ♥♥♥♥ | ♥♥♥ | ♥♥♥ | | | ♥♥♥♥ | ♥♥♥♥ | |
| XP40 | | | | | | | | | | ♥♥♥♥ |
| XP30 | | | | | | | | | | ♥♥♥ |
| SM12 | | | | | | | | | | ♥♥♥ |
| Professional | SM05 | | | ♥♥♥ | ♥♥ | ♥♥ | ♥♥ | | ♥♥♥♥ | ♥♥♥♥ | |
| SM07 | | | ♥♥♥♥ | ♥ | ♥ | ♥ | ♥♥♥♥ | ♥♥♥ | ♥♥♥ | |
| XF6 | | ♥♥♥ | | | | | | | ♥♥ | |
| XF8 | | ♥♥ | | | | | | | ♥♥ | |
| XF10 | | ♥♥ | | | | | | | ♥♥ | |
| Universal | XK10 | ♥♥♥ | | | | | | | | | |
| XK15 | ♥♥♥ | | | | | | ♥♥♥♥ | | | |
| XK20 | ♥♥ | | | | | | | | | |
Drawing for our sawtips type
Series-JX Stardard size are avaliable, used by hand-welding machine
or automatic welding machine, for processing wood and non-ferrous
metal
Series-JE Stardard size are avaliable, used by automatic welding
machine, for processing wood and non-ferrous metal
Serie-JP Stardard size are avaliable, used by hand-welding machine
or automatic welding machine, for grooving metal
Serie JA & JC , Stardard size are avaliable, used by hand-welding
machine or automatic welding machine, for cutting grass
We at XINPIN assure that your orders will receive individual
attention, whether it is big or small, we welcome your testing.
