Wear Resistance Hard Alloy Tungsten Carbide Strips For Non -
Ferrous Metal, Aluminum,Copper
100% fresh pure material to assure qualified tungsten strips with
the uniform density,consequently,the excellent hardness is
guaranteed for a high cutting performance, it also creat a longer
tool life to reduce the costs of your stock turnovers as you can
generate more profit while selling fewer goods.
Grades properties recommended for strips
| GRADE | ISO CODE | USA CODE | BINDER | DENSITY | HARDNESS | TRANSVERSE RUPTURE STRENGTH | GRAIN SIZE | RECOMMENDEDCUTTING APPLICATIONS | REMARKS |
|---|
XK10 | K10 | C2 | 6 | 14.8-15.0 | 90.5-91.5 | ≥2200 | Medium | for solidwood,hardwood
| HIP |
| XK20 | K20 | C1 | 8 | 14.6-14.8 | 89.5-90.5 | ≥2400 | Medium | for softwood,solidwood etc
| HIP |
| XF6 | K10 | C3 | 6 | 14.7-14.9 | 92.0-92.8 | ≥2200 | Fine | for solidwood, hardwood and composite board etc
| HIP |
| XF8 | K20 | C2 | 8 | 14.5-14.7 | 91.0-92.0 | ≥2300 | Fine | for construction formwork with nails, non-ferrous metal and various
woodworking tools etc | HIP |
| XF10 | K30 | C2 | 10 | 14.3-14.5 | 90.5-91.5 | ≥2400 | Fine | for solidwood,hardwood and various woodworking tools etc | HIP |
| SM10 | K30 | C6 | 10 | 14.2-14.4 | 92.0-92.5 | ≥3000 | Sub-micron | for hardwood, non-ferrous metal, PCB circuit board and various
woodworking tools etc | HIP |

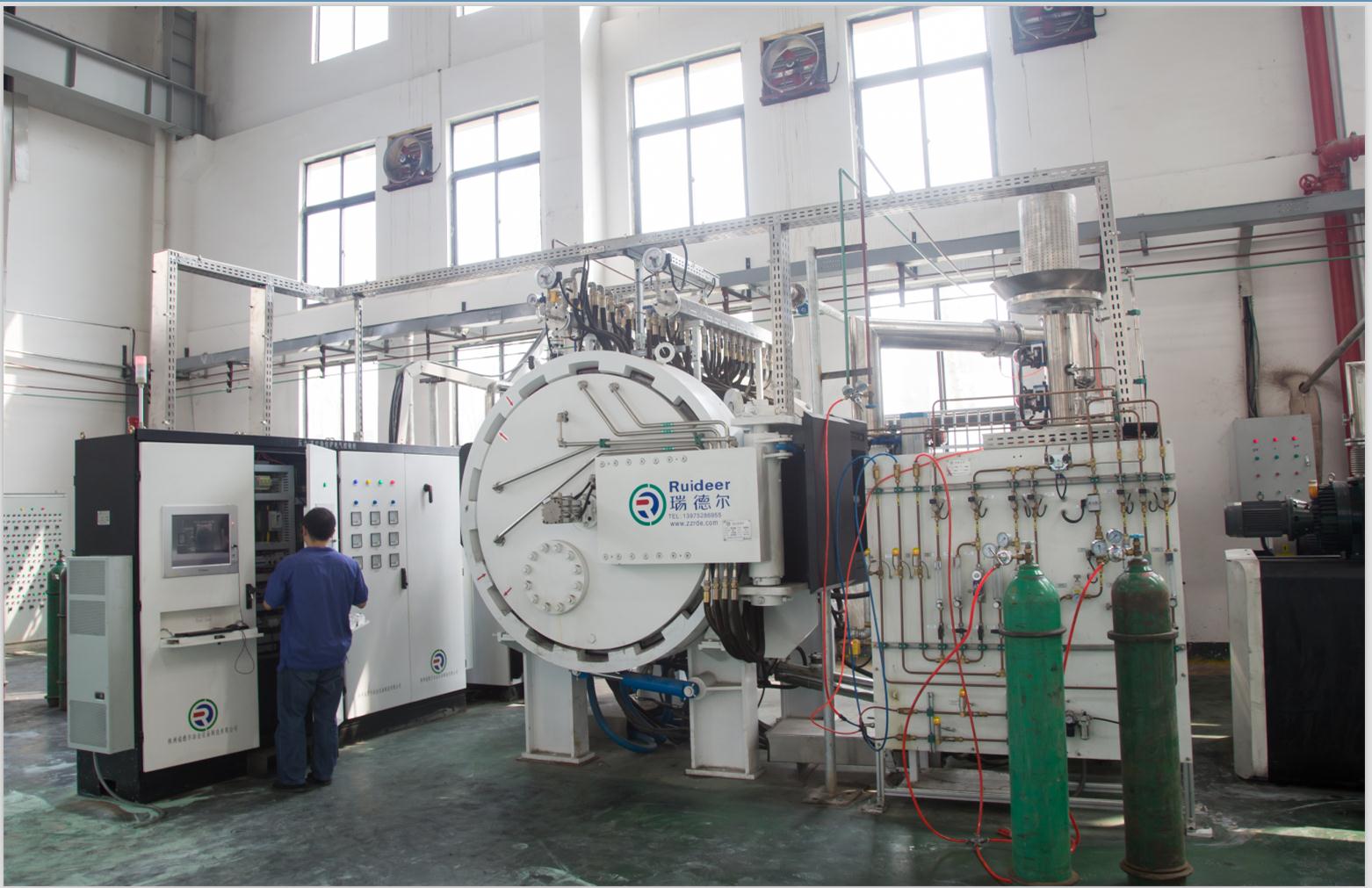

At XINPIN workshop, all strips must be hot isostatic pressed up to
24hours to increase the transverse rupture strength by 30%,finally
can give the strips a longer and high quality service life.
HIP: Hot isostatic pressing can effectively eliminate the internal
porosity of the alloy and significantly improve the bending
strength of the products. and our testing effect show that our
strips after hot isostatic pressing, the using life can be longer
and there was a marked decrease in breaking.
The unique grinding and coating process allow us to create a
long-lasting cutting edge which practically rules out wear on the
rake face.
Drawing of our standard strips for your reference, and we can also
do the customized unique special mould according to cutsomer's
demands.
We at XINPIN assure that your orders will receive individual
attention, whether it is big or small, we welcome your testing.
